FireCurtain FM1Smoke Control
Product Information

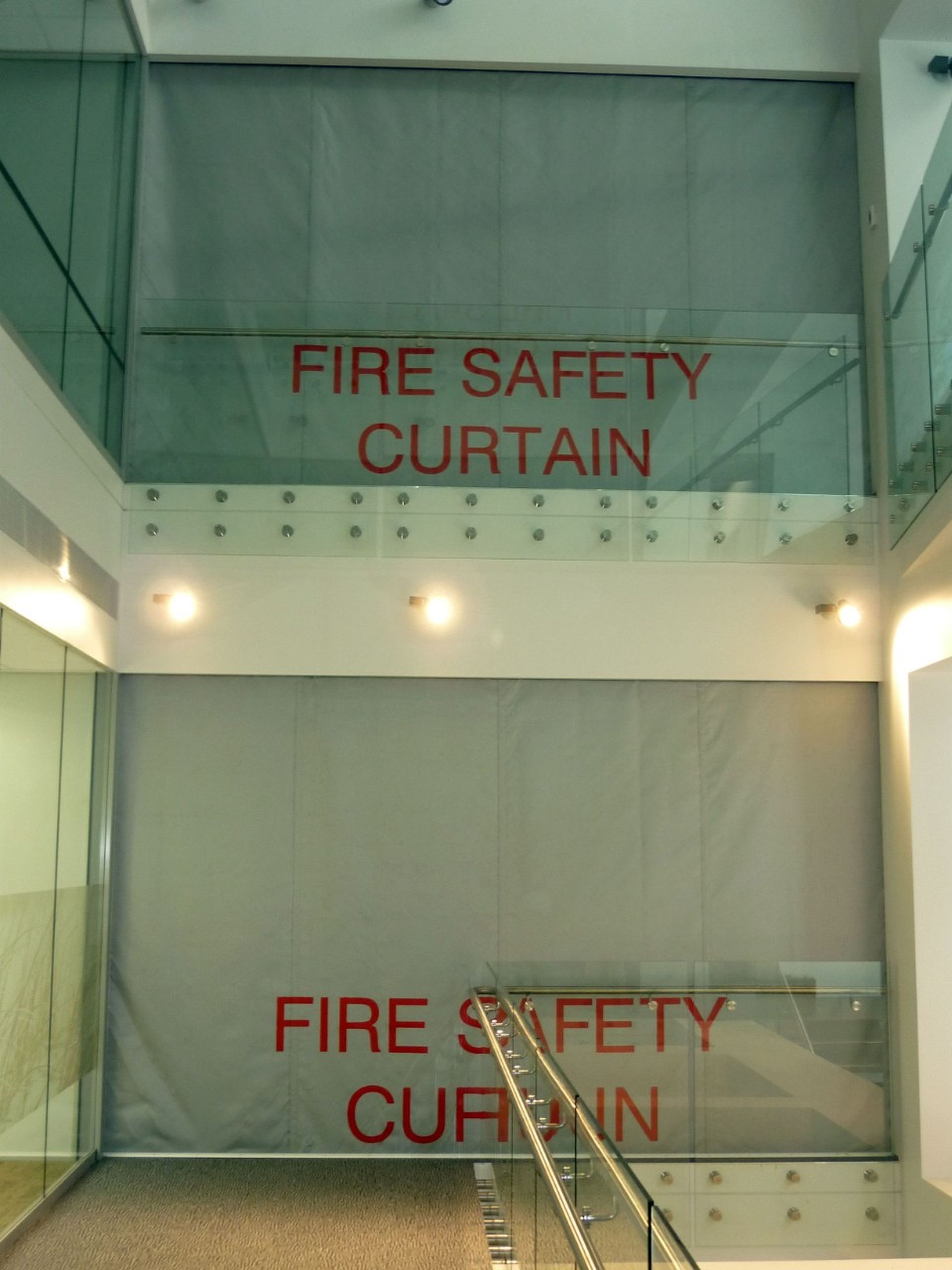

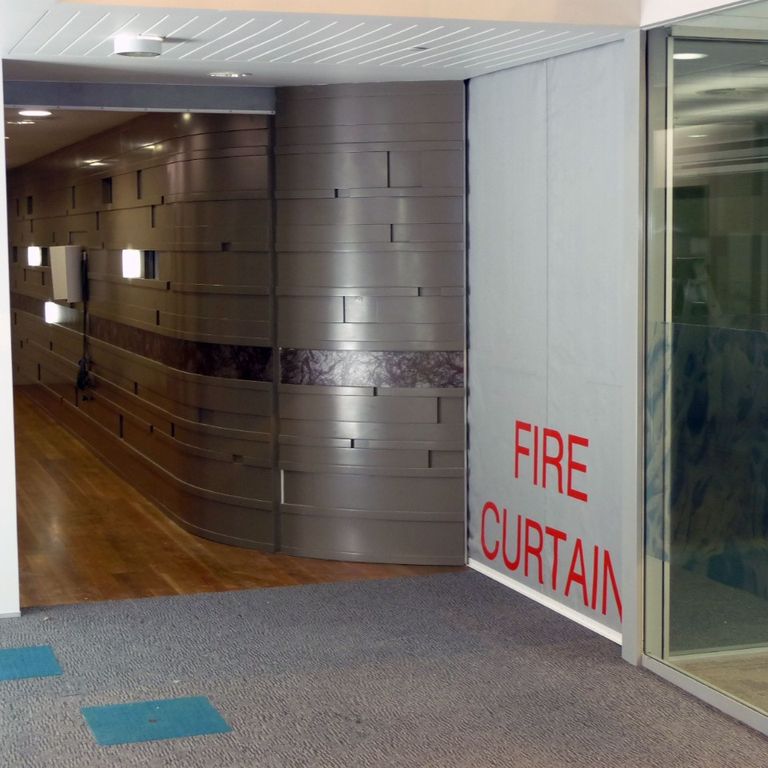

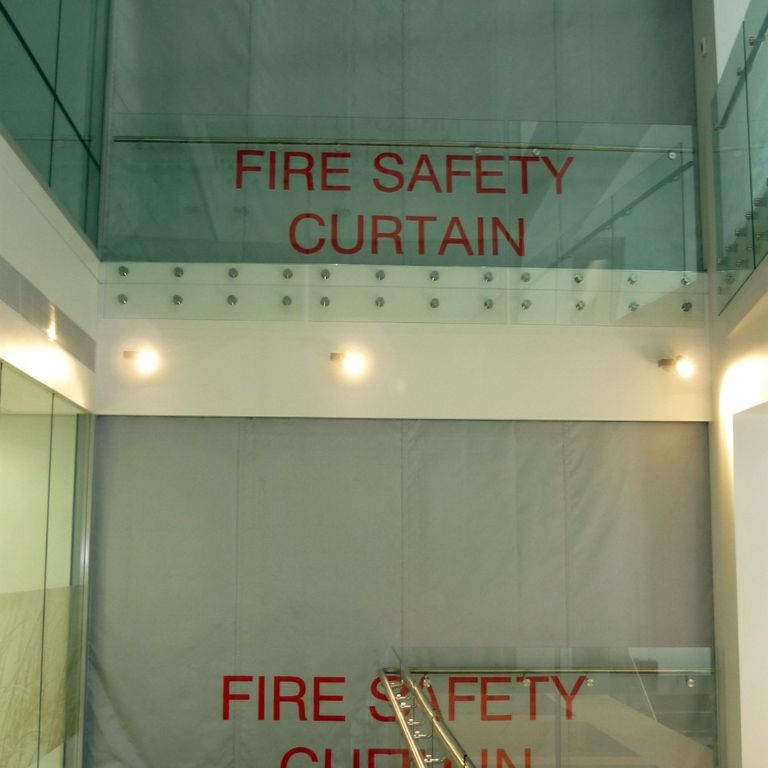

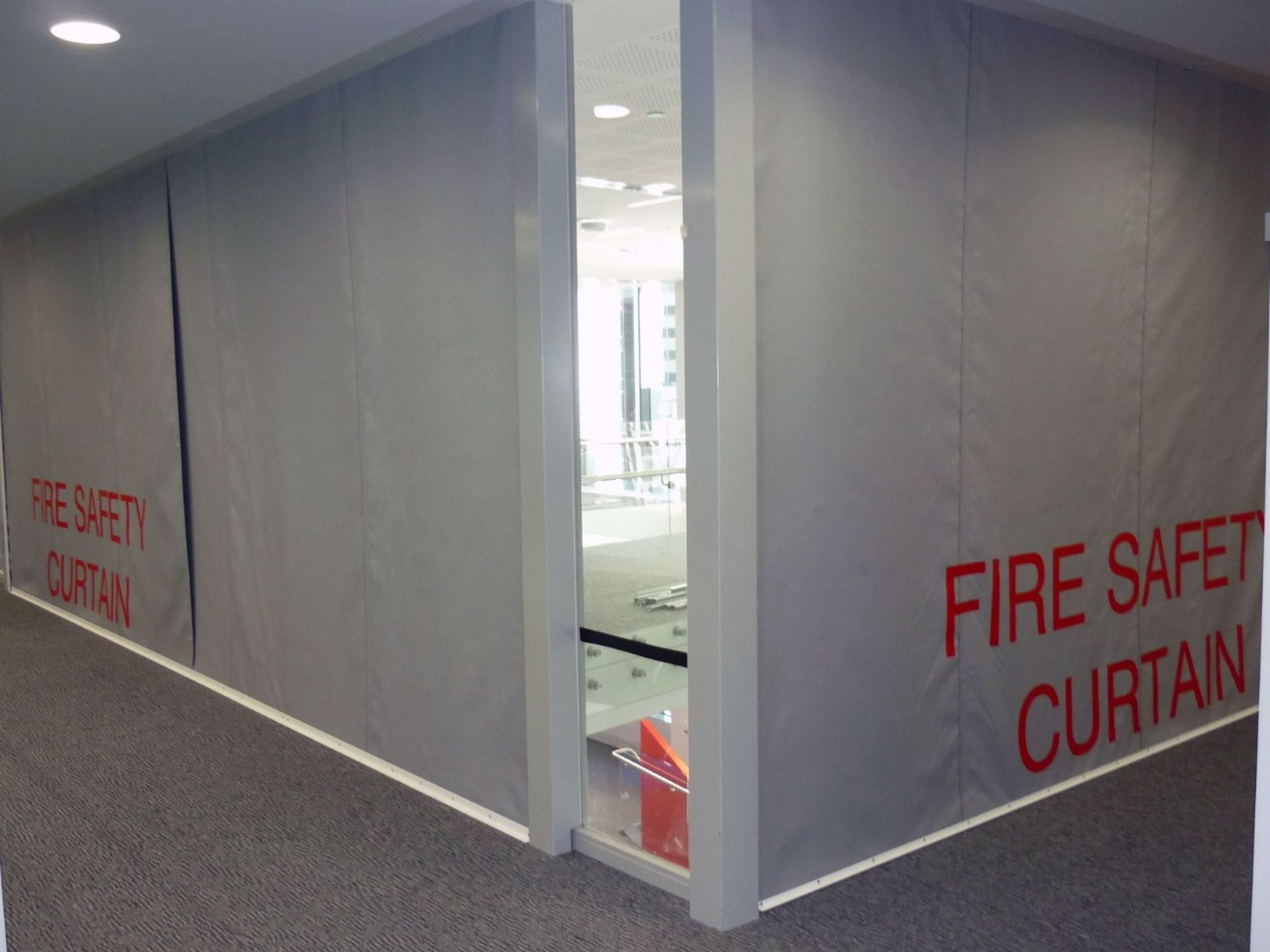

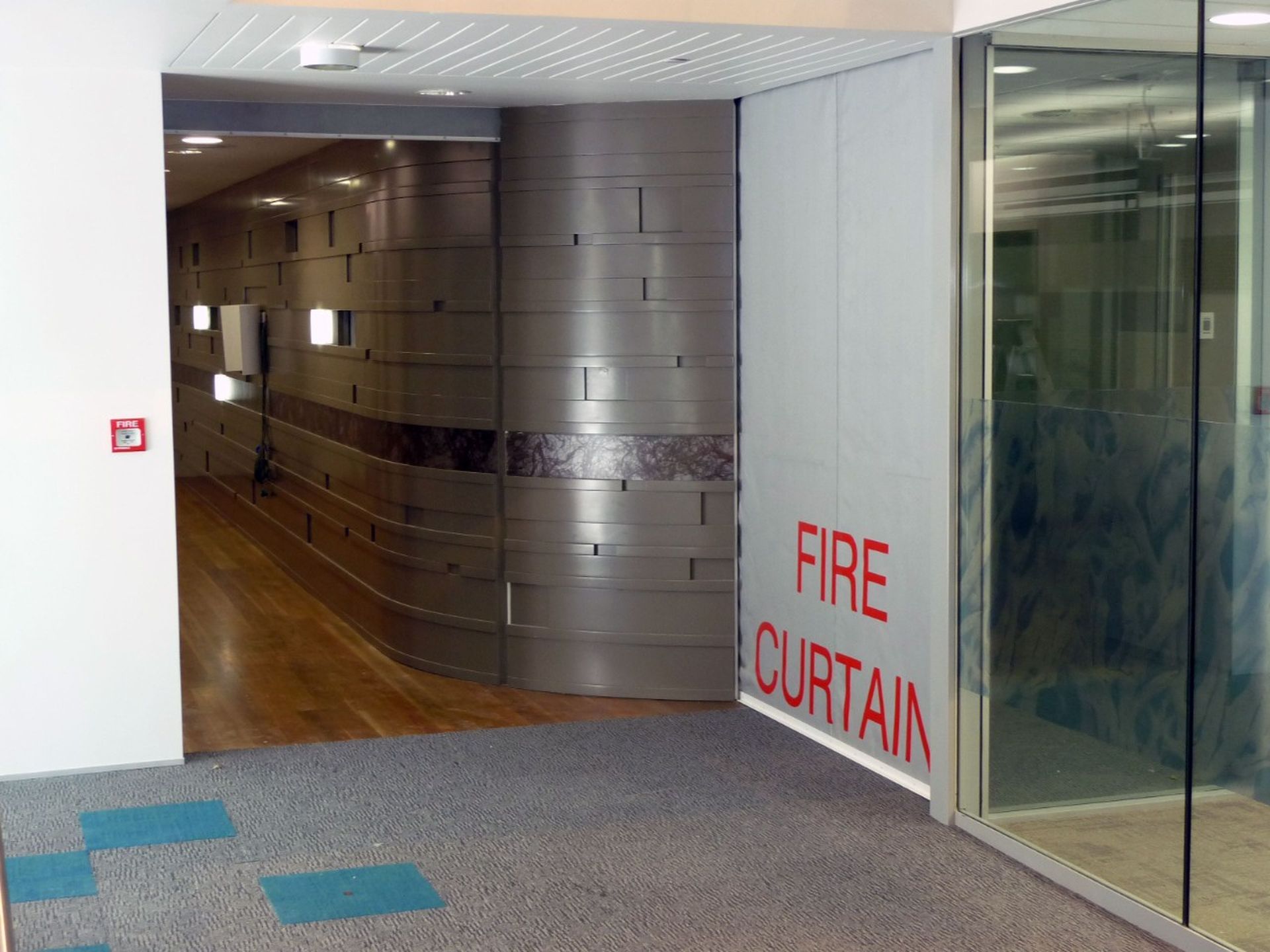

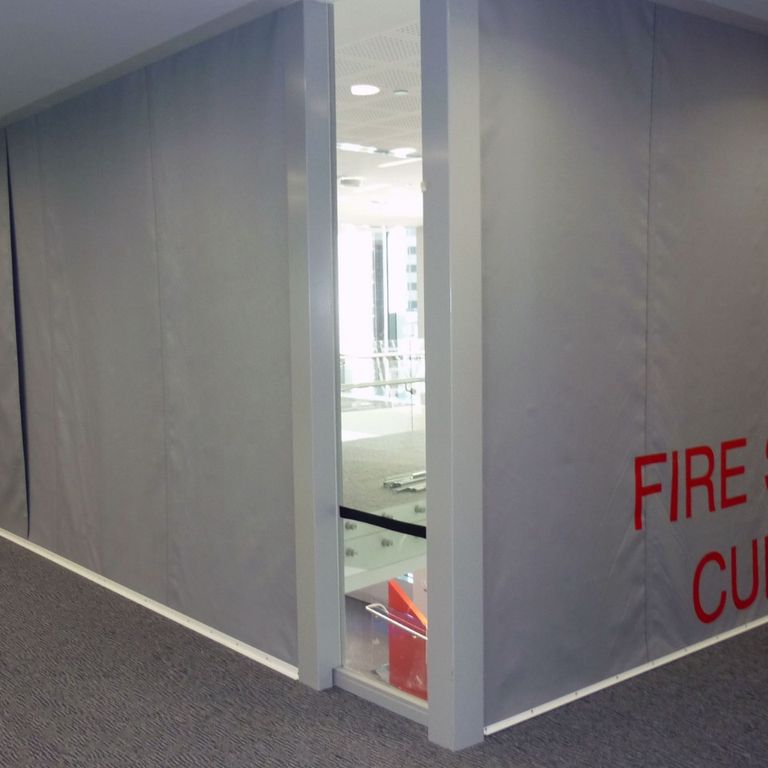

The FireCurtain FM1 is an automatic fire curtain which seals off an area to contain a fire and to prevent that fire from spreading to other areas. The automatic fire curtain has been tested according to multiple standards and also has a CE mark. The specially developed unwinding mechanism is built into the roller and it unrolls in a gravity fail safe manner without needing power.
Product Highlights
- Tested in accordance with EN 1634-1
- Certified in accordance with EN 16034 & 13241
- Classified according to EN 13501-2
- Available with two different fire protection fabrics up to EW20 and EW30
- Prevents the breakthrough of flames and spread of fire
- Width for a single system from 1500 mm to 4000 mm
- Width for multiple systems up to 9450 mm
- Standard drop up to 5500 mm
- Installation into a suspended ceiling for "invisible” fire protection
- Continuous 10000 life cycle test in accordance with DIN 4102-18
Technical Information
Dimensions
The compact modular system is available in the following dimensions:
- Width for a single system from 1500 mm to 4000 mm
- Width for multiple systems up to 9450 mm
- Standard drop up to 5500 mm
Drive technology
The safe operation of an automatic fire curtain is assured: the unwinding mechanisms have different performance classes for all operating modes.
The unwinding mechanism is installed within the roller and contains, in addition to the high-quality DC motor with its planetary gears, a control board with its own intelligence for carrying out the essential safety-related functions:
- Control of speed
- Locking unit
- Monitoring of the “rest” position
- Synchronisation of multiple units
- “HWD” intermediate position when in gravity-fail-safe mode
- Adjustment of the bottom bar
- More than 10000 cycles by internal testing
Classification
In accordance with EN 16034 & 13241:
- Resistance tests to fire done for more than 240 minutes (to the standard time / temp curve)
- Classification in accordance with EN 13501-2: E 60 C / E 180 C1 / EW 30 C1
- Reliability test with 500 cycles
- Extra reliability test done to DIN 4102-18 with 10,000 cycles
- Self-closing durability: EN 14600, class C1
Compliance
- Tested and certified to European Standard EN 16034 & 13241
- Furnace test to EN 1634-1
- Classified to EN 13501-2
- Fire resistance + integrity: E 180 C
- Radiation limitation EW 20 or EW30
- Reliability test to EN 16034 & 13241 with 500 cycles
- Reliability test to DIN 4102-18 with 10.000 cycles
- Manufactured to ISO 9001:2015
- Third party certification (A+) according to APF-1817 and APF-1818 certificates
