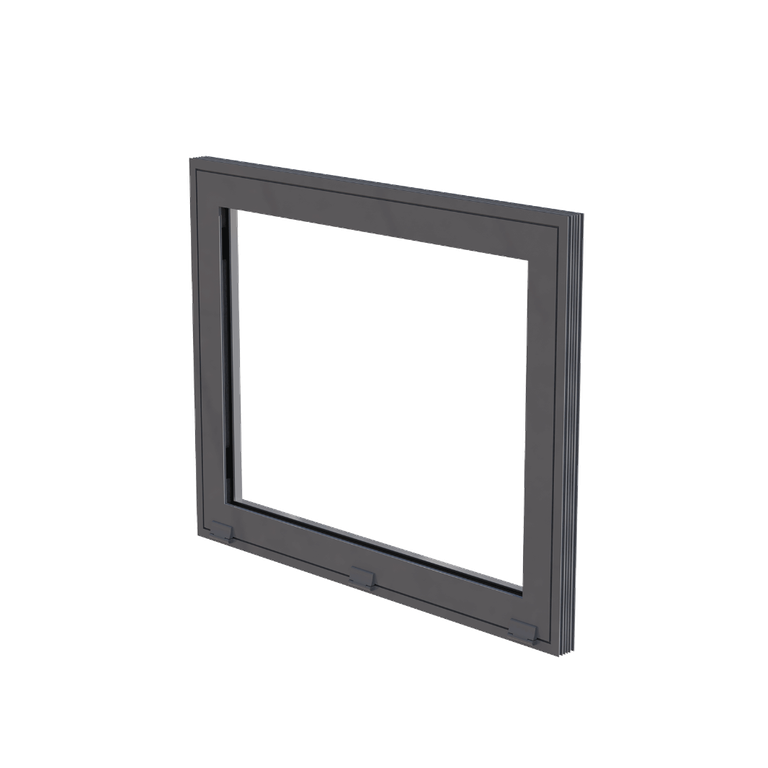

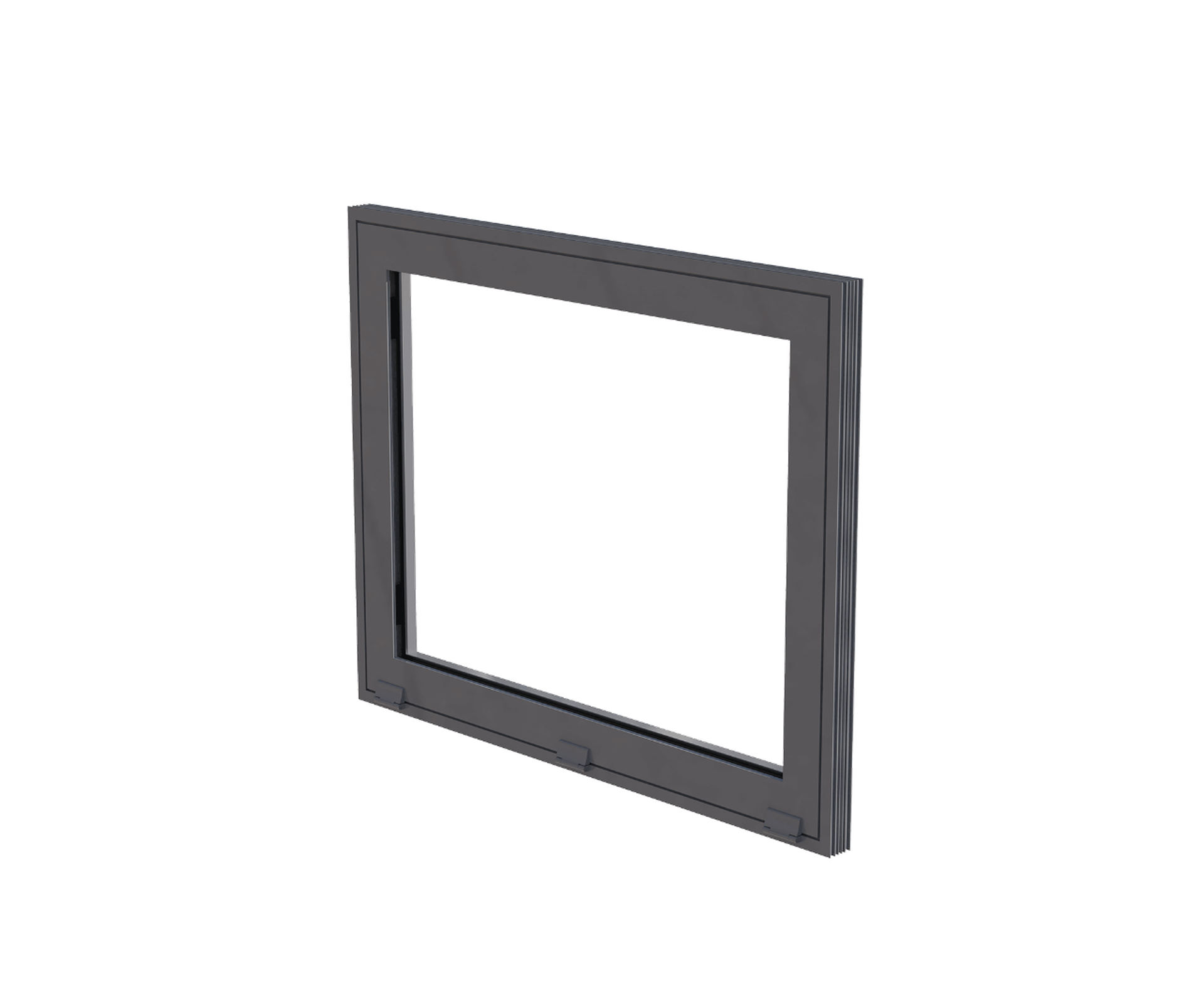

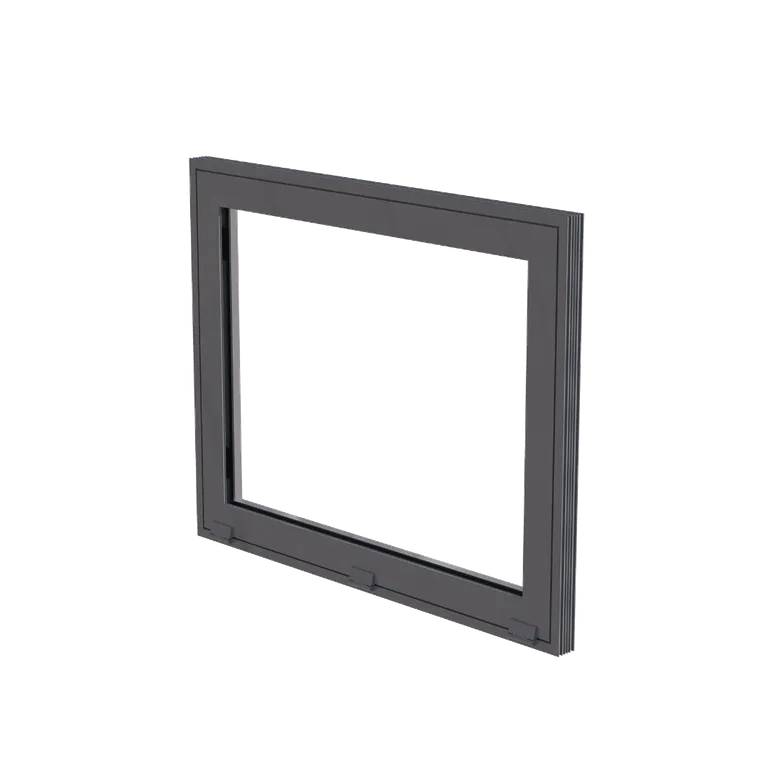

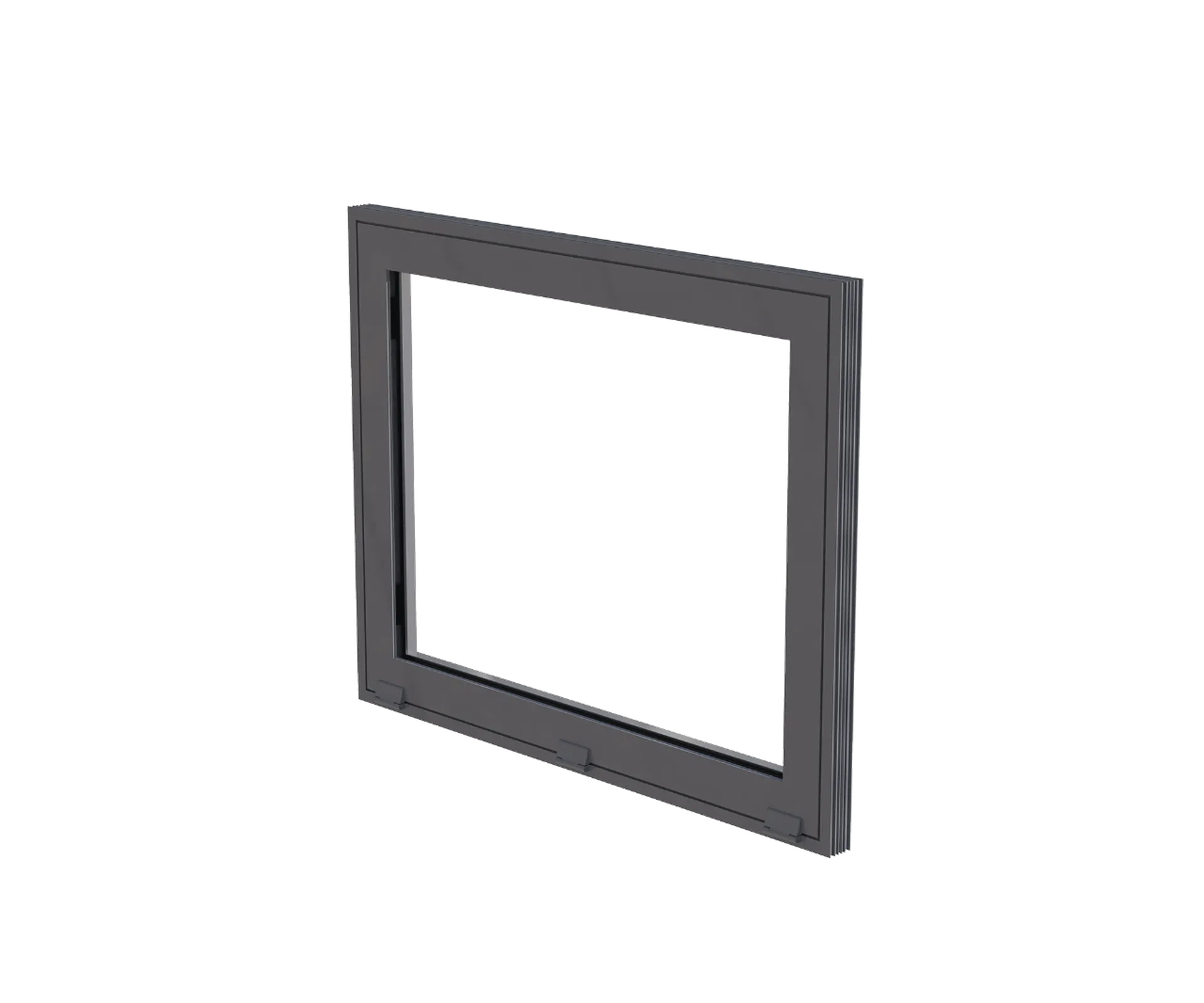

Kameleon 5EThermally broken façade ventilator for natural ventilation and smoke control
Product Information
Kameleon 5E is a high-performance, thermally broken façade ventilator that combines day-to-day natural ventilation, smoke extraction and daylight entry within a single solution. Certified to EN 12101-2 and tested to EN 14351-1, it is designed for installation in glazed, steel and timber façades. With a wide range of glazing, infill and actuation options, Kameleon 5E delivers excellent thermal insulation, airtightness and flexibility for commercial and industrial buildings
Product Highlights
- EN 12101-2 certified for smoke and heat exhaust ventilation (SHEV)
- Thermally broken construction for excellent energy performance
- Suitable for both natural ventilation and smoke control applications
- Designed for integration into glazed, steel and timber façades
- U-values as low as 1.0 W/m²K depending on configuration
- Air permeability Class 4 and weather resistance Class E1200
- Available with single, double and triple glazing, polycarbonate or aluminium infill panels
- Electric and pneumatic actuation options available
- Sound insulation up to 40 dB for improved occupant comfort
Technical Information
Dimensions
- Unit width: 470 mm to 2570 mm (in mm increments)
- Unit length: 470 mm to 2570 mm (in mm increments)
Base Options
- Depth of frame: 75 mm
- Larger frame flap: 98 mm wide (external dimension)
- Smaller frame flap: 73 mm wide (external dimension)
Hinge Position

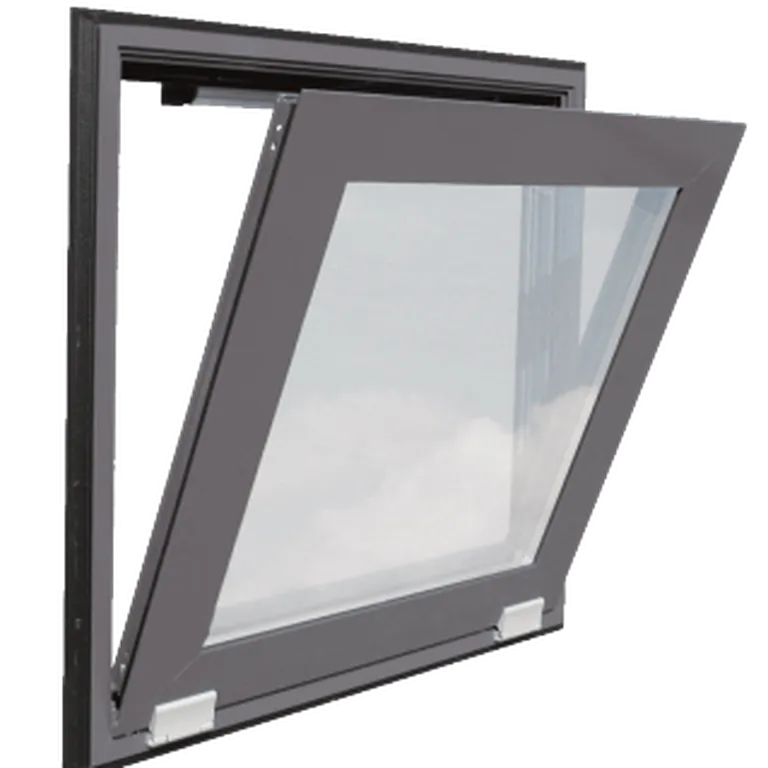

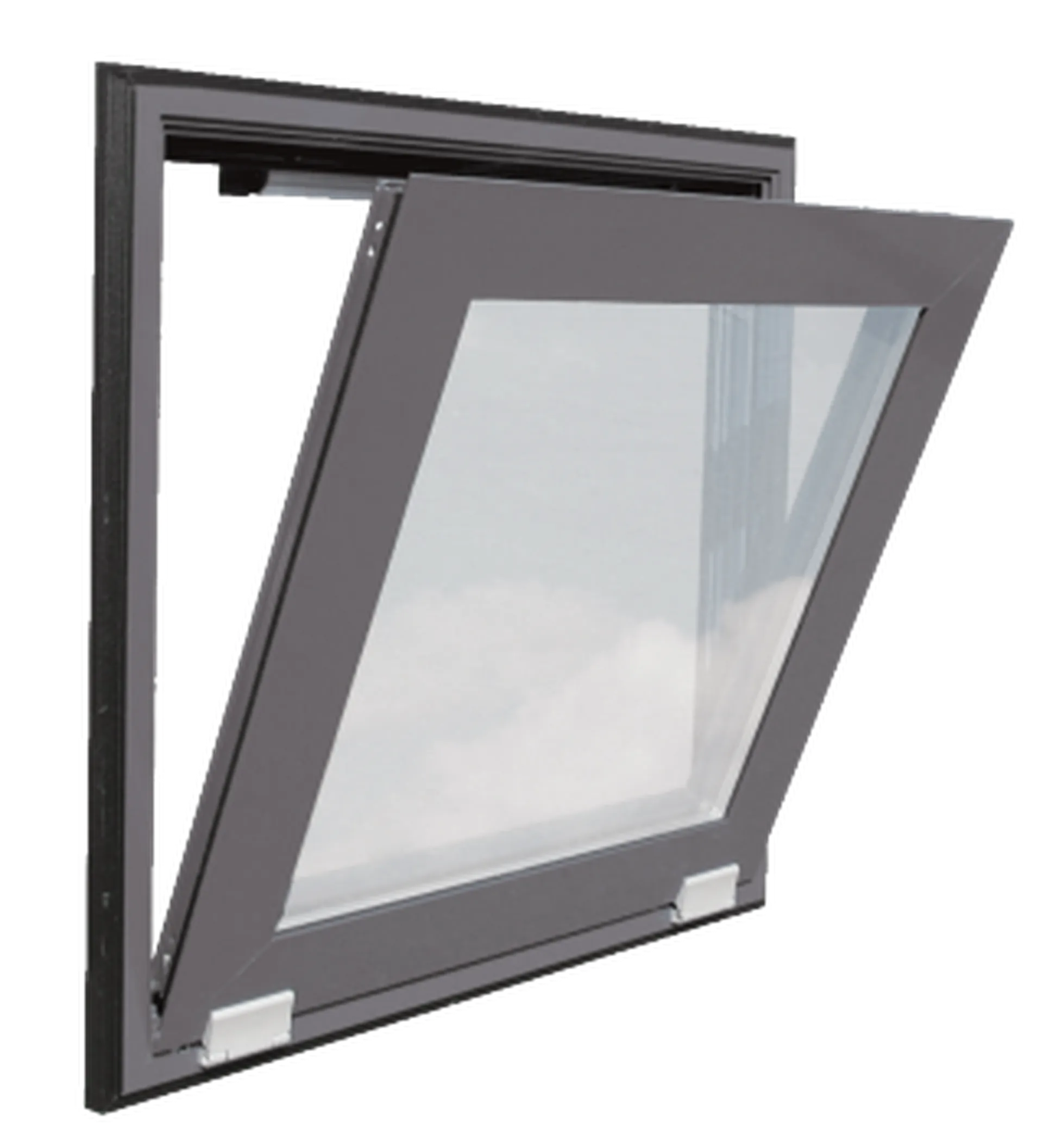

- Hinge at bottom, opens from above
- Hinge at top, opens from bottom
Infill Options
- Single glazing
- Double glazing
- Triple glazing
- Polycarbonate
- Aluminium infill panel
Flap thickness
- Large profile: 8-58 mm
- Small profile: 20-30 mm
Certifications & Test Results
In accordance with EN 12101-2:
- Wind load class: up to WL 3000
- Operating temperature: T(00) / T(-15)
- Resistance to heat: B300 – E
Reliability:
- Smoke ventilation: 1000 cycles
- Day-to-day ventilation: +10000 cycles
In accordance with EN 14351-1:
- Air permeability: Class 4
- Resistance to driving rain: Class E1200
Additional performance classes
- Acoustic performance: up to 40.0 dB
- U value: up to 1.0 W/m²K
