SmokeMaster SM5
Product Information

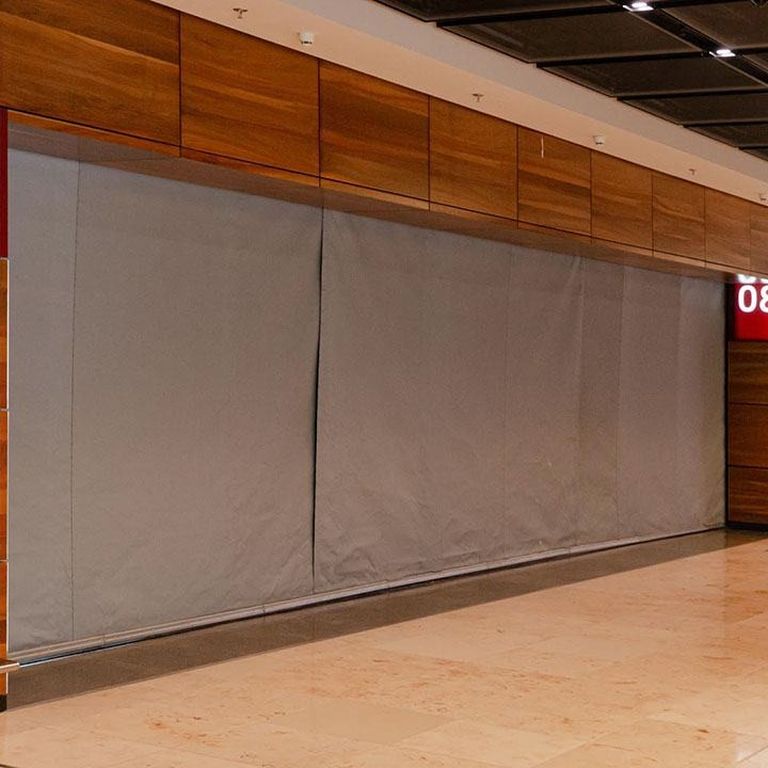

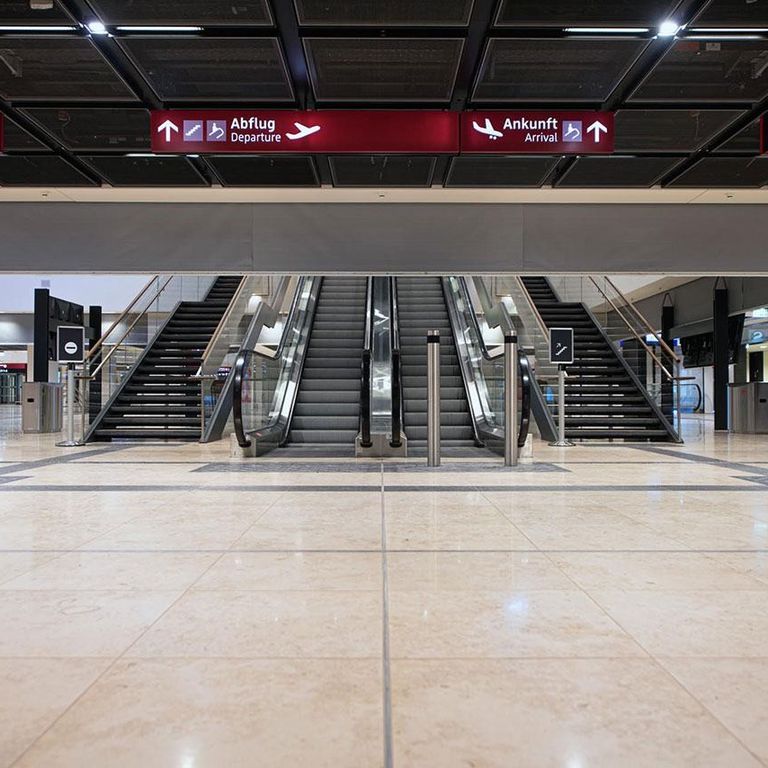

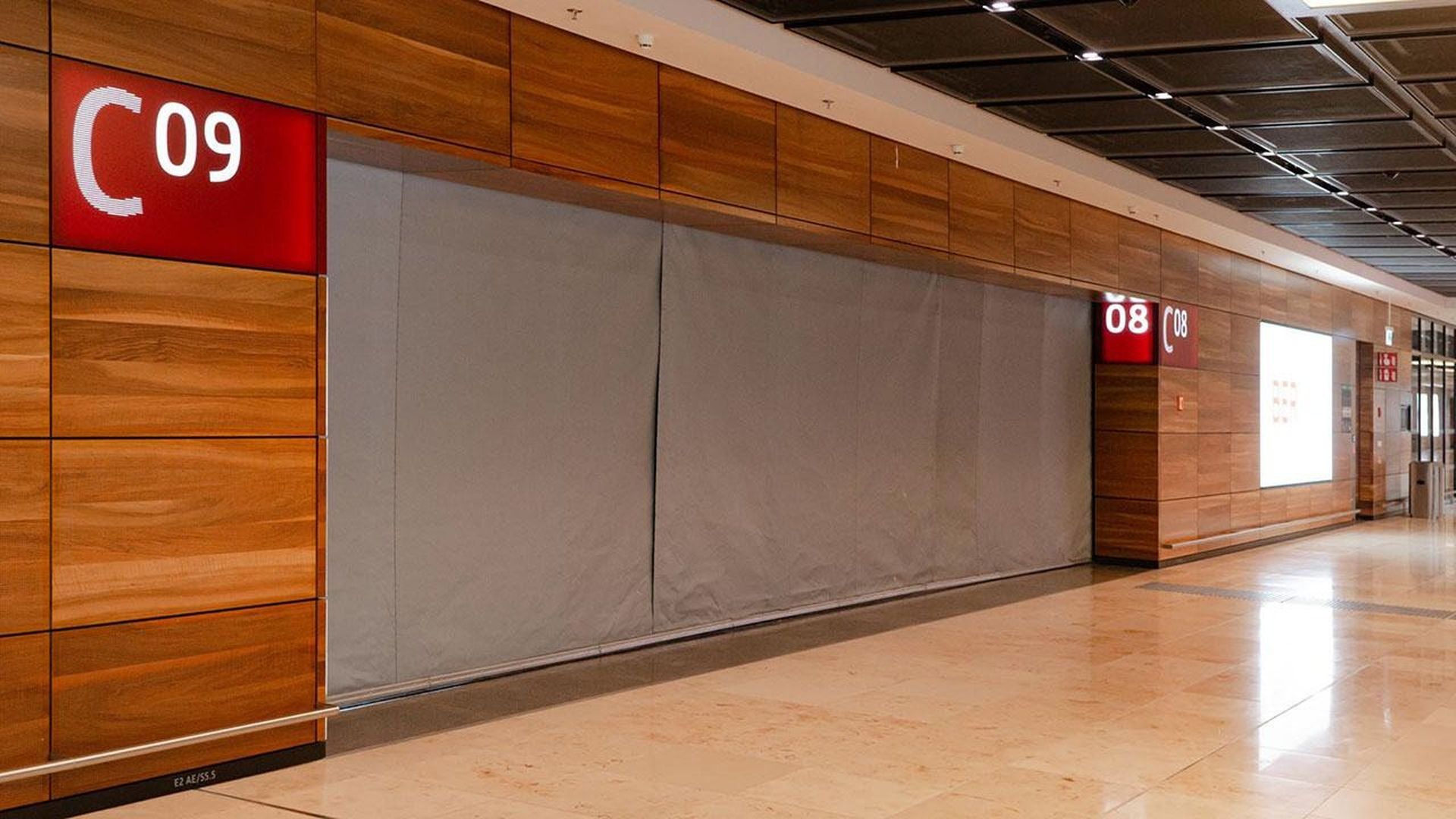

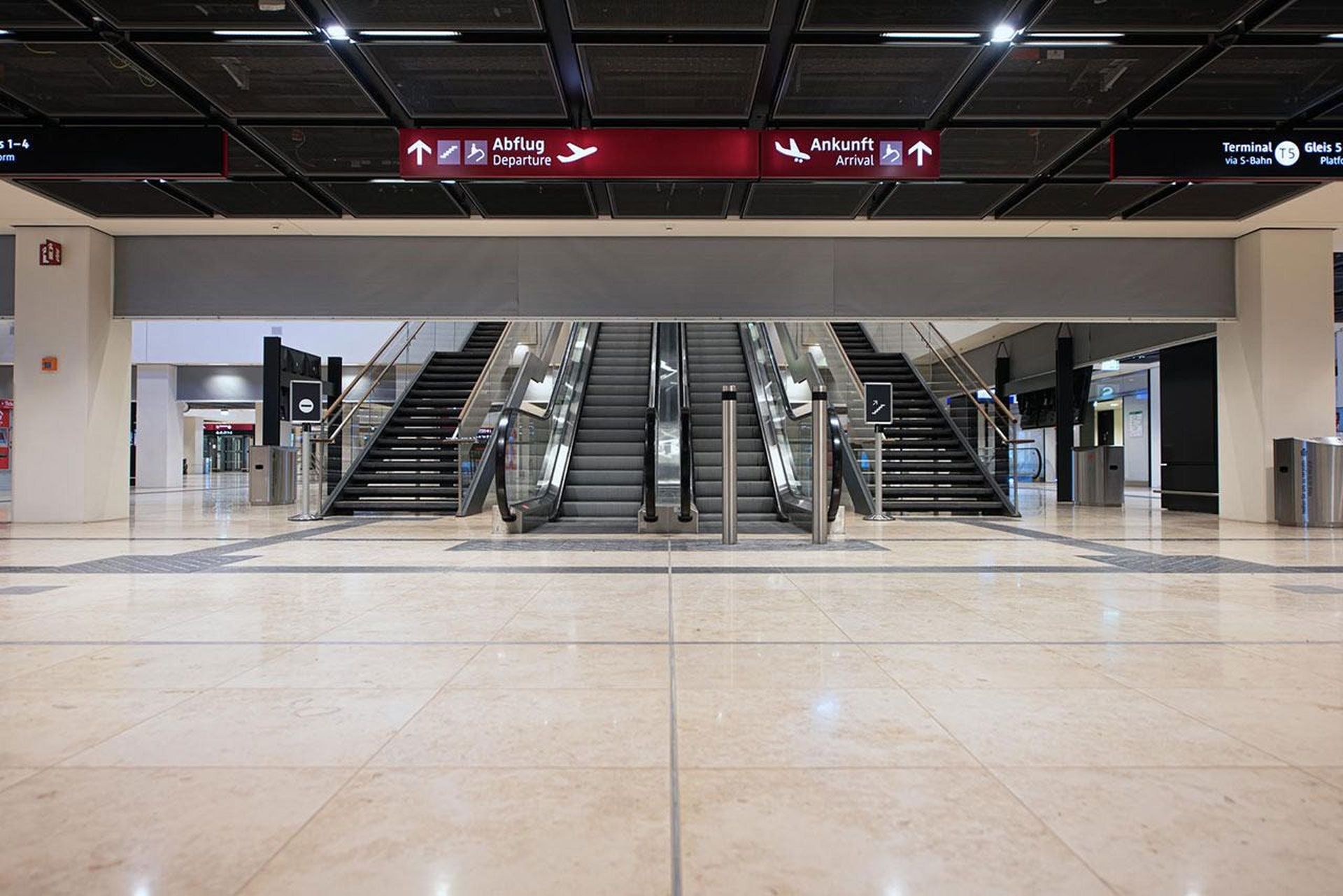

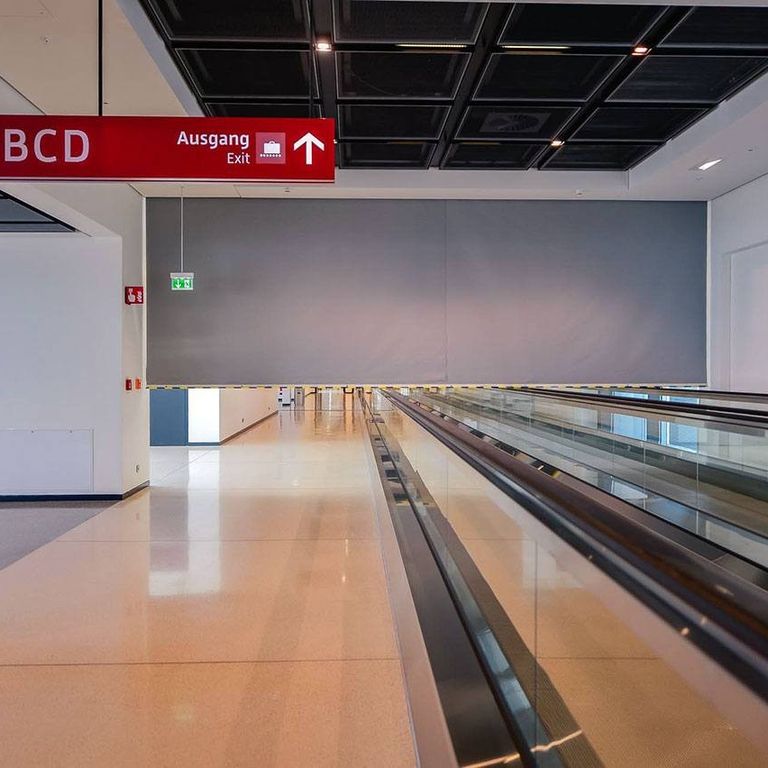

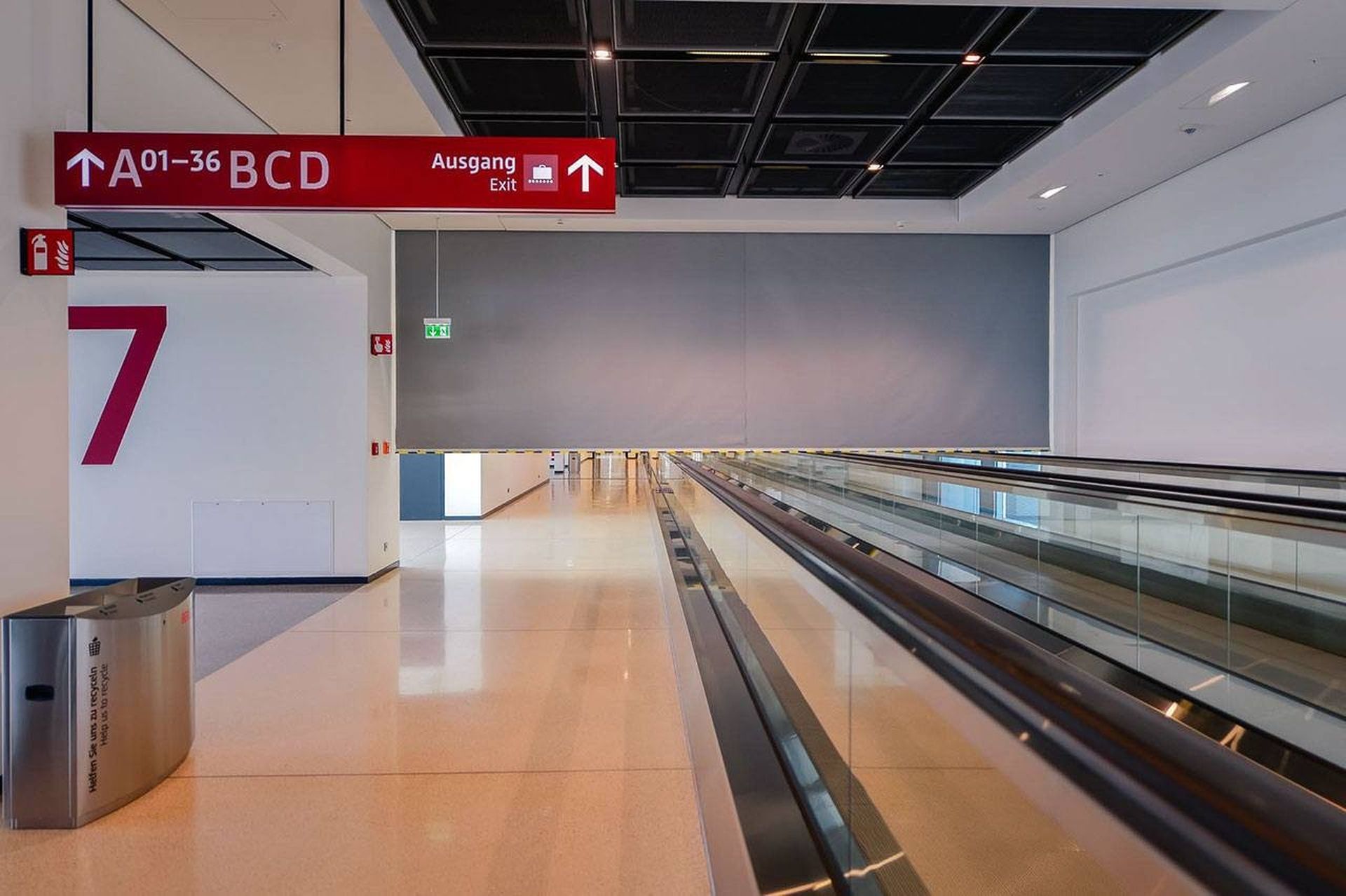

A SmokeMaster SM5 is a smoke curtain that drops automatically in case of fire. Its role is to limit smoke and combustion gases to prescribed smoke sections, preventing the uncontrolled spread and cooling of the smoke gas. A SKC-SC certified control panel ensures safe operation. The SmokeMaster SM5 is used in shopping centres, atria, airports, warehouses and factory buildings etc, in other words, wherever static smoke curtains are not suitable for architectural, logistical or operational reasons.
Product Highlights
- SmokeMaster SM5 curtains have been tested and certified according to EN 12101-1:2005+A1:2006
- The associated SKC-SC control panel has been certified according to EN 12101-10:2005 and ISO 21927-9:2012
- "Invisible” fire protection: no visible fixings and sprung bottom bar
- Extra option to equip the curtain with side guides to hold the fabric in position, either by roller side guides (FR) or rod side guides (FS)
- Pre-fabricated assembly delivered with a modular design
- Operation: ASB 1 to ASB 4
- Unit length: 1.5 m to an infinite length
- Drop: 0.5 m to 15 m
- All metallic parts can be provided with a powder coating according to RAL or similar
Technical Information
Dimensions
- Unit length: 1.5 m to an infinite length
- Drop: 0.5 m to 15 m
Controls
There are two actuator types available for the SM5: a D version (drive up, drive down version - ASB2/4) with 230V AC, as well as the G version (gravity down version - ASB1/3) with 48V DC motor and functional weight.
The unwinding mechanism of the G version is installed within the roller and contains, in addition to the high-quality DC motor with its planetary gears, a control board with its own intelligence for carrying out the essential safety-related functions:
- Control of speed
- Locking unit
- Monitoring of the “rest” position
- Synchronisation of multiple units
- “HWD” intermediate position when in gravity-fail-safe mode
- Adjustment of the bottom bar
- Tested for more than 10000 operational cycles
Compliance
- Tested to European Standard EN 12101-1
- Furnace test to EN 1363-1
- Reliability and response time tests with 1,000 cycles
- Permeability test not exceeding a leakage rate of 25 m³ per hour per m2
- Fire resistance + integrity: up to D 120 and DH 120 class
- Manufactured to ISO 9001:2008
- Certification according to EU Construction Products Regulation
