Defender F2 E160S
Product Information
The Defender F2 is a discreet fire-rated smoke control damper designed for mechanical shaft ventilation. Certified to EN 12101-8 and classified to EN 13501-4, it delivers 60 minutes of fire integrity, insulation, and smoke sealing when closed, and can be opened automatically for smoke extract. Its unique design allows for a flush, paintable finish that blends seamlessly with interior walls, while enabling easy maintenance without shaft access. The unit is pressure-tested up to 1000 Pa.
Product Highlights
- CE marked for assured compliance to EN 12101-8
- 60 min fire integrity, insulation, and smoke sealing in accordance with EN 12101-8

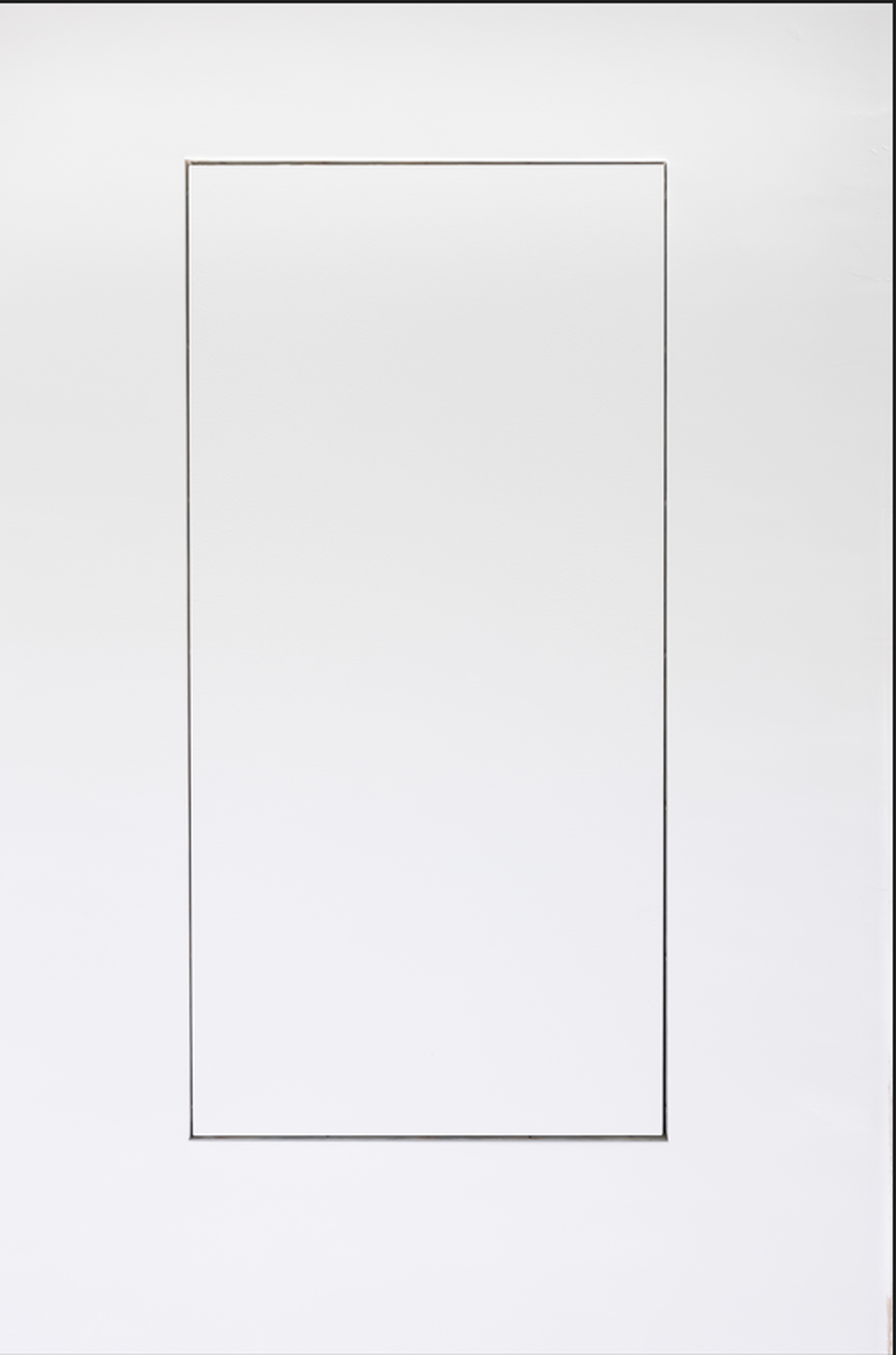

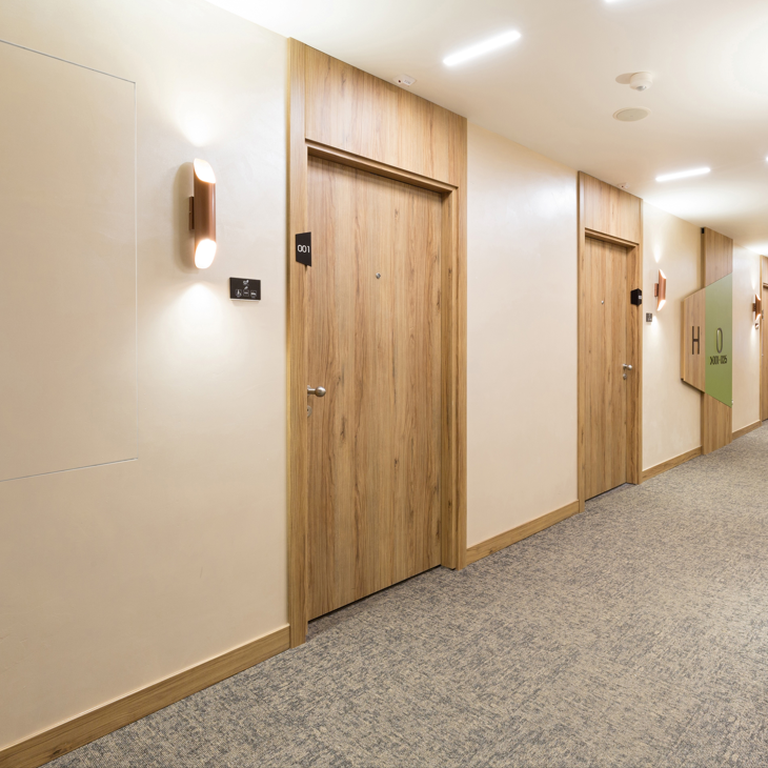

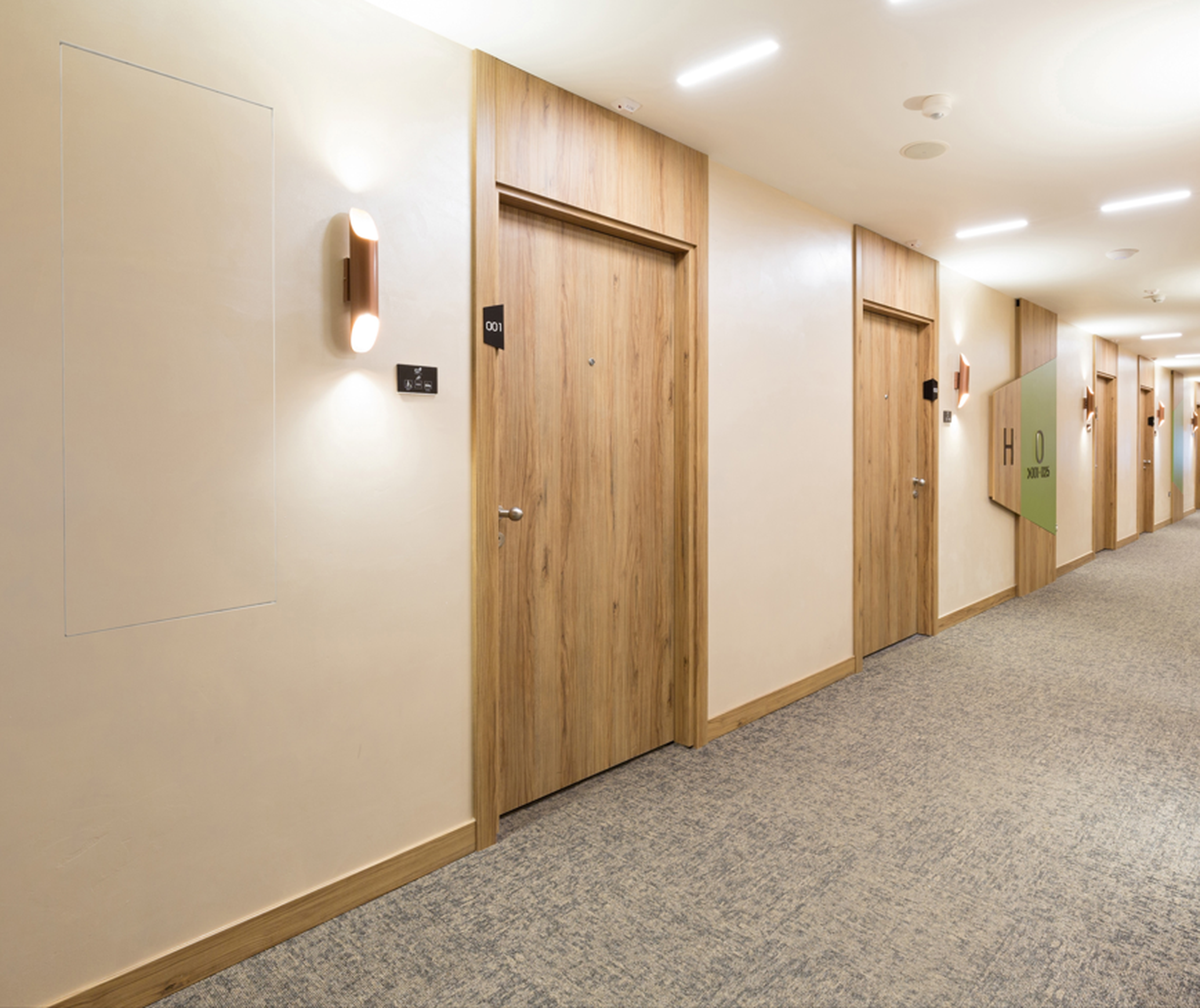

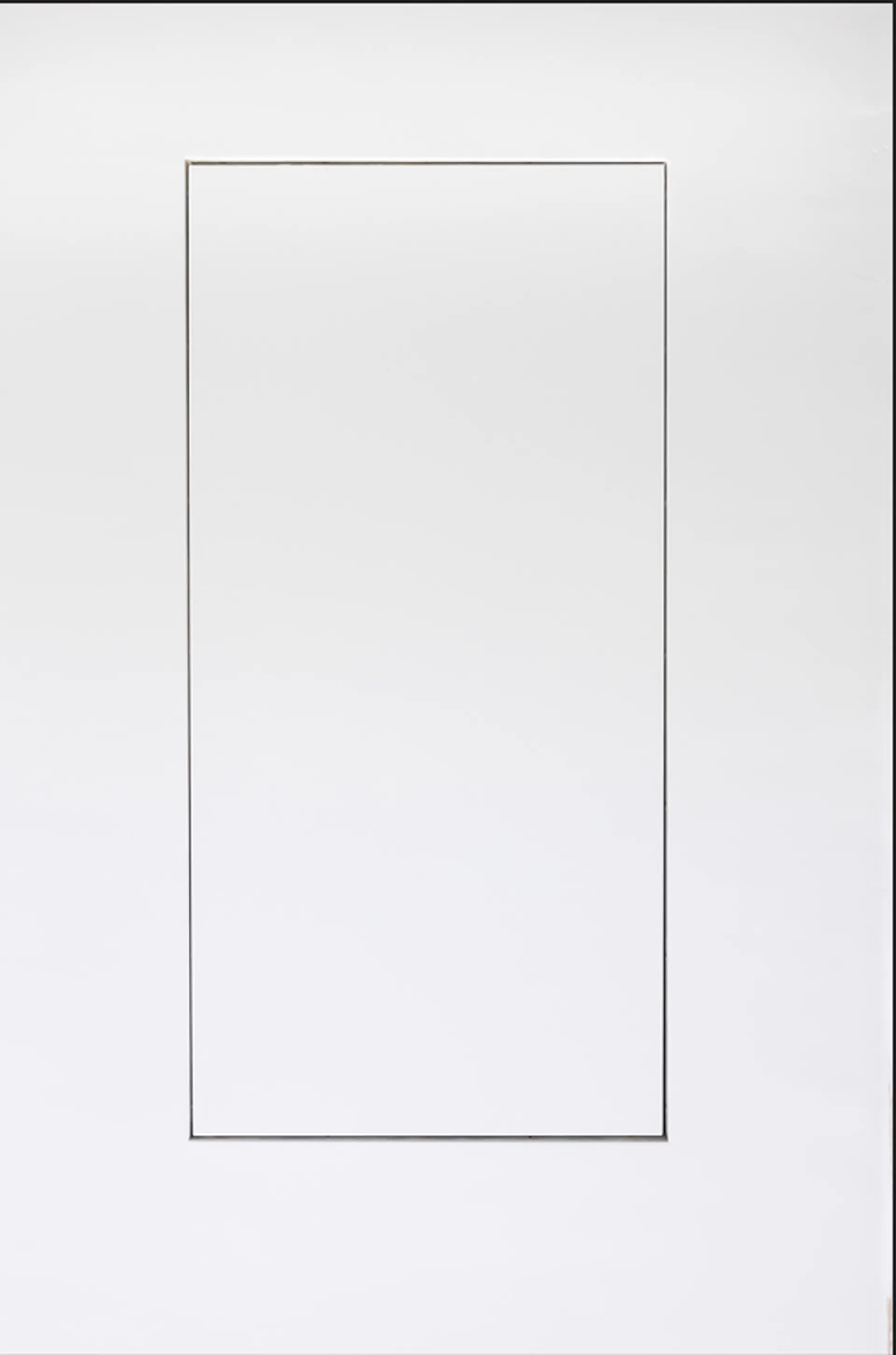

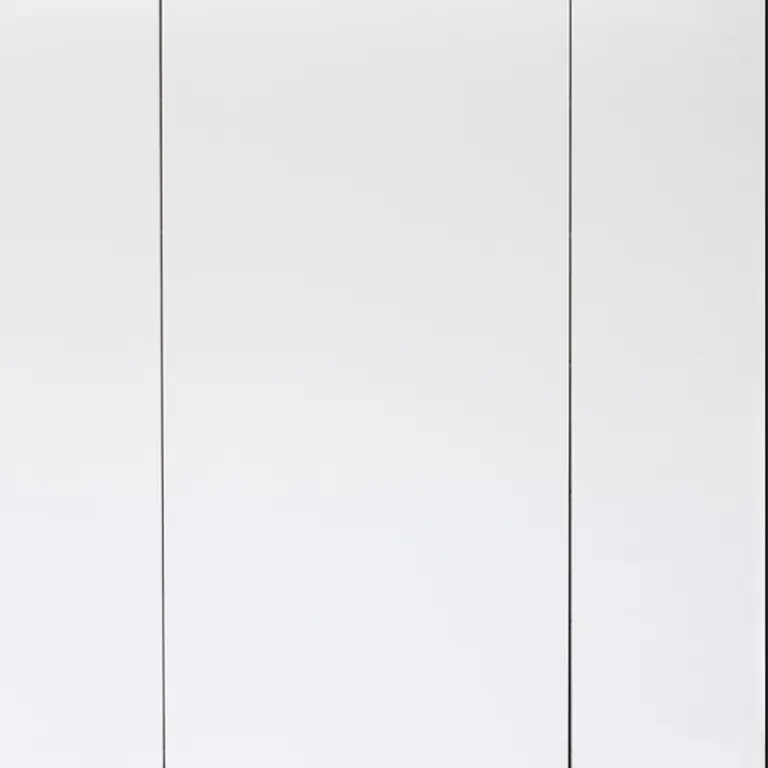

- Flush finish with walls for unobtrusive design
- Easy maintenance without shaft access
- Tested to 1000 Pa pressure and 300 cycles
- Paintable surface to match any wall colour
- Automatic activation option
- Multi-compartment shaft applications
Technical Information
Dimensions
Suitable for a structural opening of 796x 1381 - openings may need specific treatment, consult with Colt team for more detailed information
Applications
- Suitable for residential and commercial buildings
- Designed for vertical shafts and multi-compartment installations
Suitable for applications within:
- Approved Document B (England & Wales),
- Scottish Technical Handbook
- Northern Ireland Technical Booklet E
- Technical Guidance Document B (Ireland)
- BS 9999
- BS 9991
- SCA Guide
Materials & Finishes
- Damper body: mild steel with non-combustible calcium silicate board (A1 rated)
- Mineral wool insulation

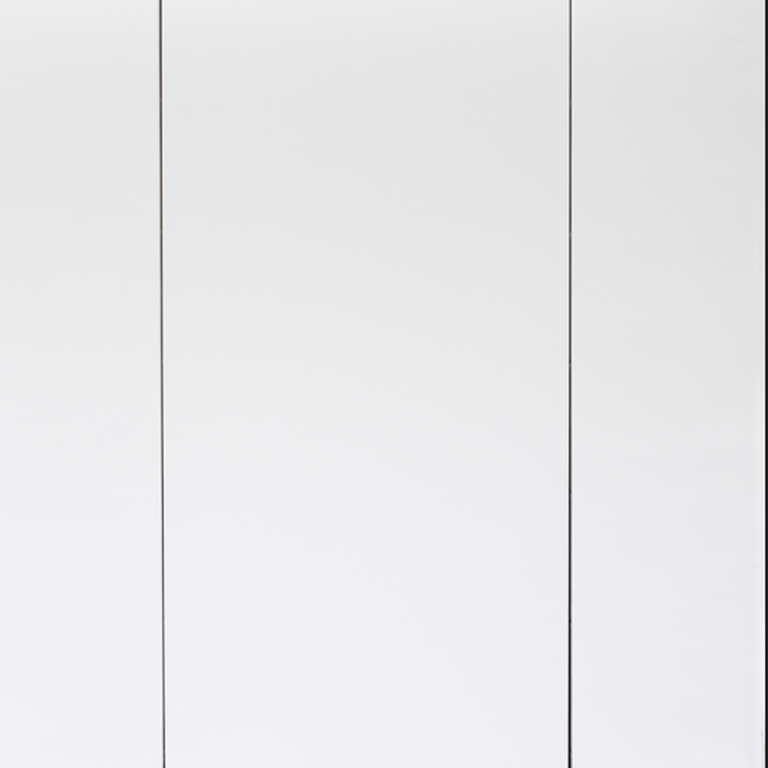

- Bead edge profile allows plaster skim finish flush with wall surface
- Surface paintable on-site with standard interior paint
Performance data
- Certified to EN 12101-8
- Classified to EN 13501-4
- Fire integrity: 60 minutes (both directions)
- Insulation: 60 minutes (both directions)
- Smoke sealing: 60 minutes
- Pressure tested up to 1000 Pa
- Cycle tested to 300 cycles; suitable for monthly test regime for 25 years
Operation & Activation
- Automatic activation

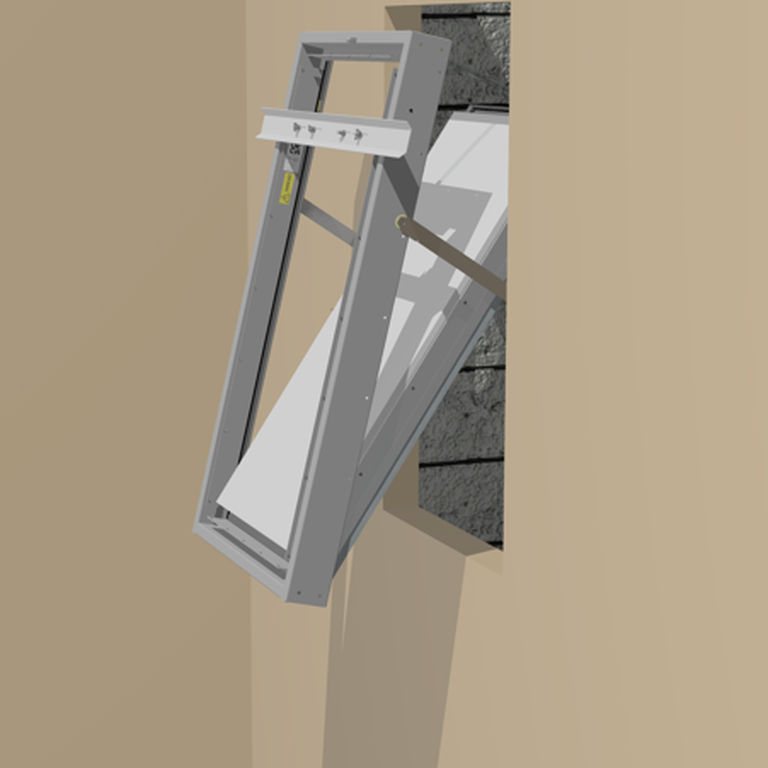

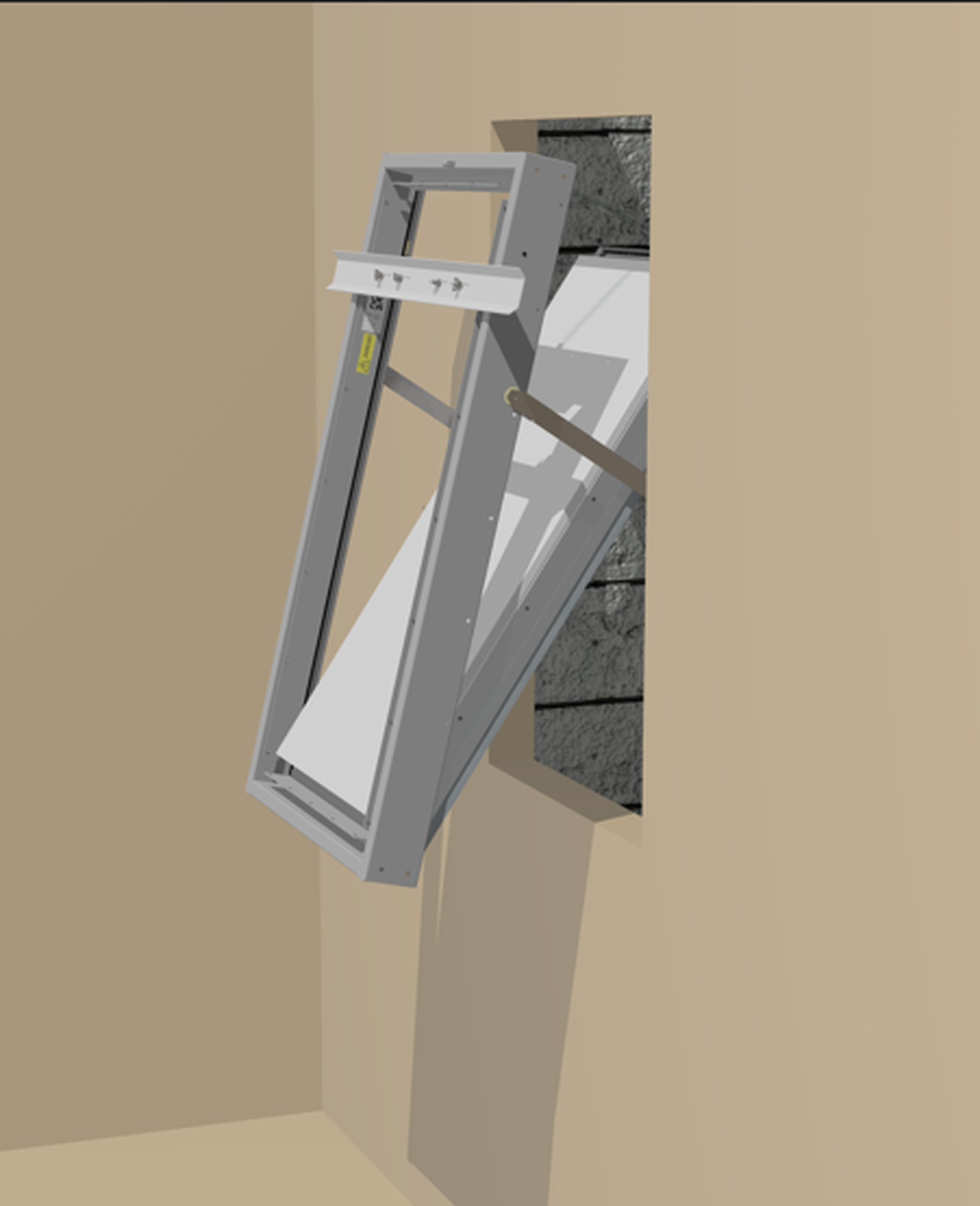

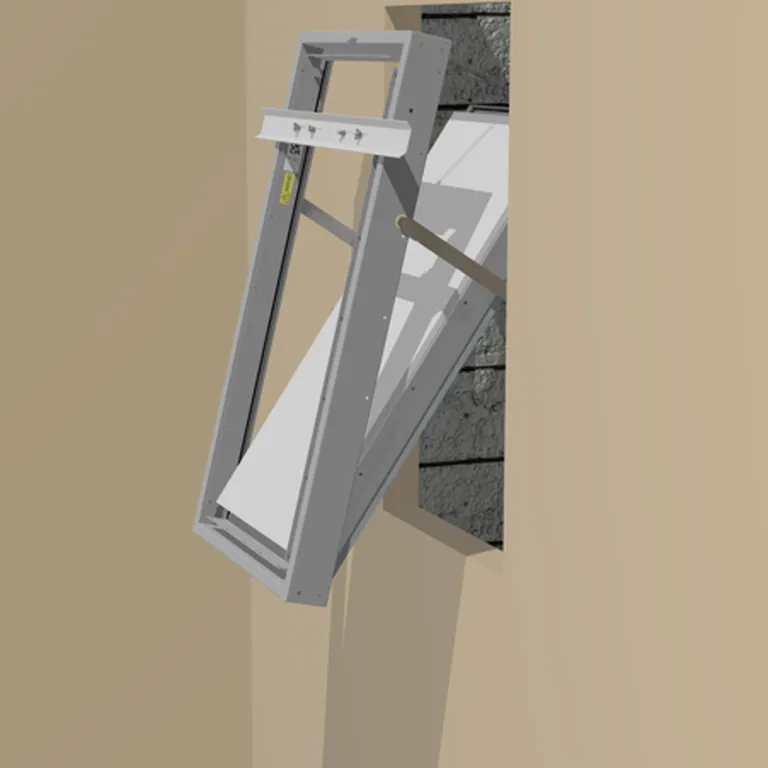

- Motor release accessible from corridor or lobby side for maintenance
- Multi-stage sealing system to minimise leakage in both ambient and fire conditions
Compliance
- CE marked
- Fully tested to EN 1363-1, EN 1366-2, EN 1366-10
General Information
- Smoke Control Damper, fire-rated EI 60S
- For mechanical shaft ventilation systems
- Multi-compartment shaft applications
